Breakout Board Options for P2 Edge Modules

Reading Time: 2 min read

Description #

There are now two Breakout Boards for P2 Edge Modules. What is the difference?

The new P2 Edge Breakout Board (#64029) includes power jumpers to allow customers more flexibility in how they connect and control power to the board.

This P2 Edge Breakout Board (#64029) provides access to every I/O pin available on the P2 Edge Module (#P2-EC). We also have a P2 Edge Mini Breakout Board (#64019) for customers that don’t require all the I/O pins, or are working with the P2 Edge Module with 32MB RAM (#P2-EC32MB).

The video above and the table below provides more details.

P2 Breakout Comparison #
FeatureP2 Mini Breakout #64019P2 Edge Breakout #64029
Feature P2 I/O Pin AccessP2 Mini Breakout #64019 46 P2 Edge Breakout #64029 64
Feature P2 Accessory HeadersP2 Mini Breakout #64019 5P2 Edge Breakout #64029 8
Feature WiFi Programming?P2 Mini Breakout #64019 YesP2 Edge Breakout #64029 Yes
Feature Reset ButtonP2 Mini Breakout #64019 YesP2 Edge Breakout #64029 Yes
Feature Prop Plug HeaderP2 Mini Breakout #64019 YesP2 Edge Breakout #64029 Yes
Feature DC Barrel Jack, 2.1mm, for 5VDC power inputP2 Mini Breakout #64019 YesP2 Edge Breakout #64029 Yes
Feature Shunt jumper for custom power input or on/off switchP2 Mini Breakout #64019 NoP2 Edge Breakout #64029 Yes
Feature PCB DimensionsP2 Mini Breakout #64019 3.15 x 1.4 in (80 x 35.6 mm)P2 Edge Breakout #64029 4 x 1.4 in (101.6 x 35.6 mm)
Feature Compatible P2 Edge ModulesP2 Mini Breakout #64019 P2-EC and P2-EC32MBP2 Edge Breakout #64029 P2-EC

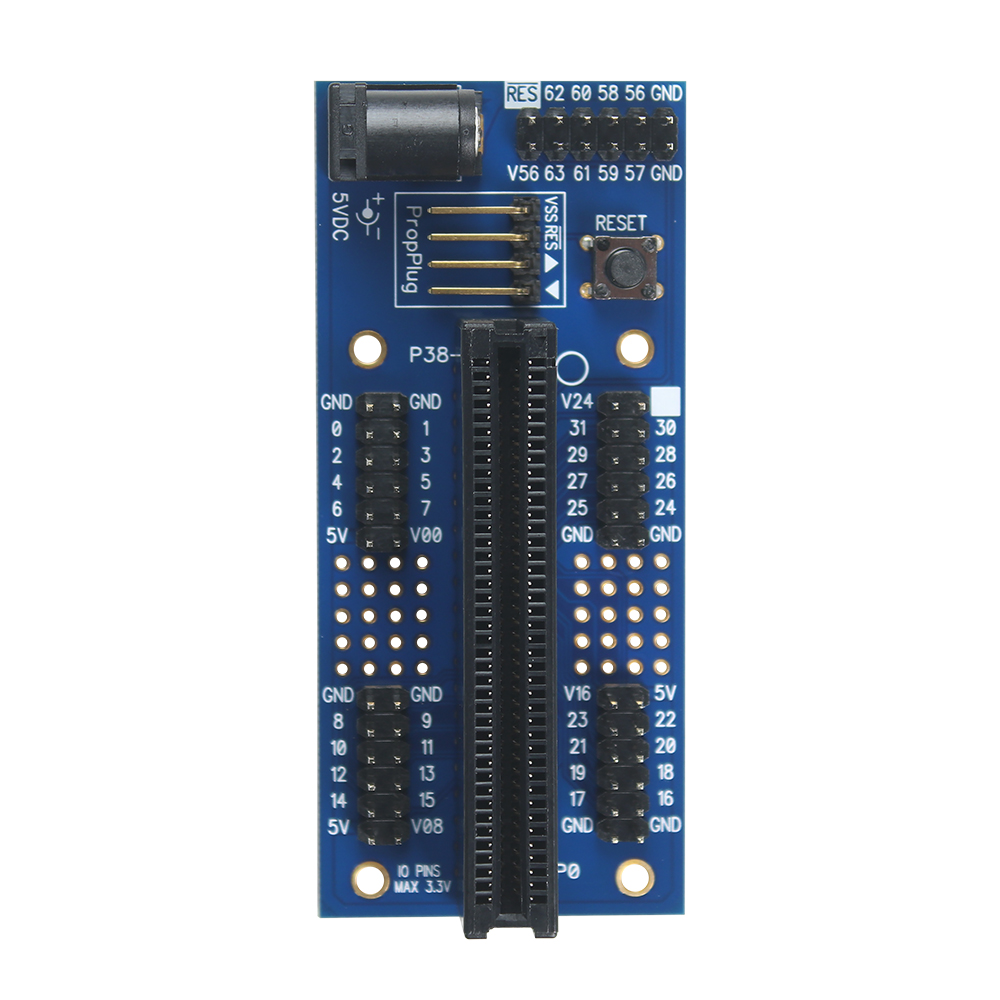

P2 Edge Mini Breakout Board #64019 #

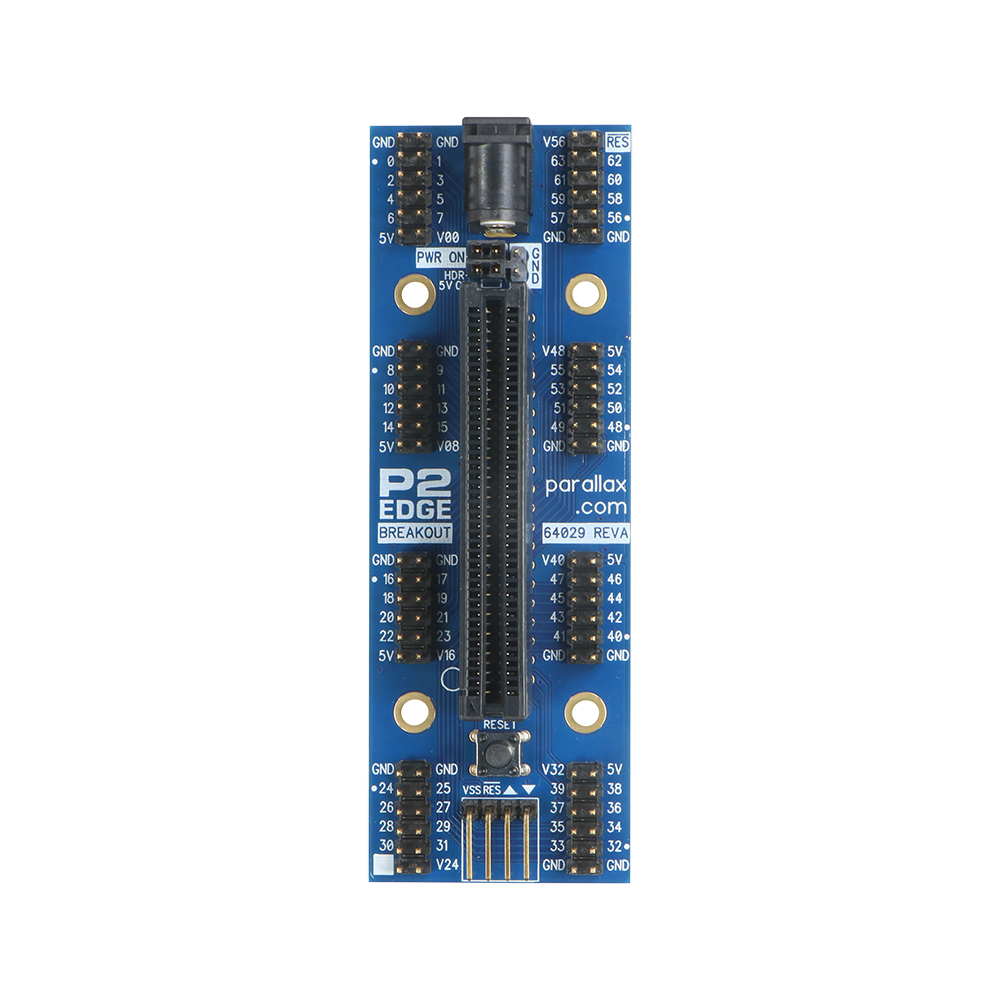

P2 Edge Breakout Board #64029 #
Recommended for P2 Edge Module (#P2-EC) #
Recommended for P2 Edge Module with 32 MB RAM (#P2-EC32MB) #
Optional for Wireless Programming for Either Setup #
